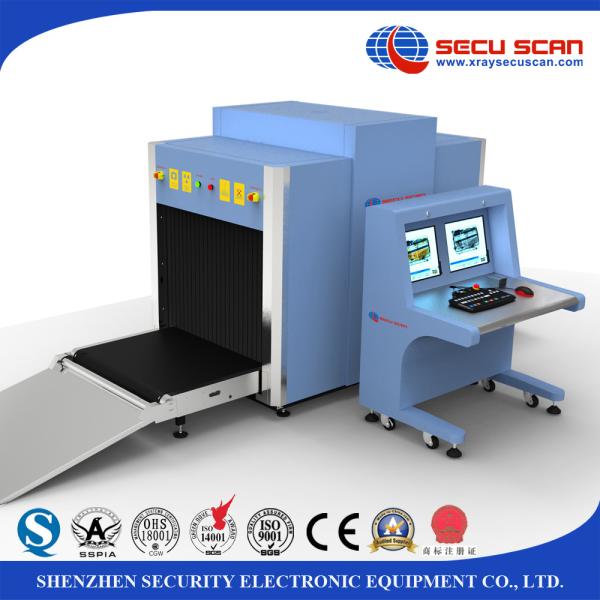

High Penetration 40mm Baggage Screening Equipment For Security Inspection

Brand Name : SECUSCAN

Model Number : AT8065B

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C,T/T

Supply Ability : 300 sets/month

Delivery Time : 7 days when we have stock,15 days when we have no stock

Packaging Details : Wooden Packing

Warranty : 12 months

Technical Support : free of all life

OEM : Yes

Conveyor Max Load : 200kgs

Software interface : Support multi-language

Wire resolution : 32-38AWG

Spatial resolution : horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm

Pass rate : 720 bag/h

Tunnel size : 800*650mm

Penetration : 40-43mm steel

Film safety : ISO1600

Conveyor speed : 0.22m/s

OEM/ODM : Accepted

Price : Negotiable

Contact Now

High Penetration 40mm Baggage Screening Equipment For Security Inspection

Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection, SGS
  • We got CE, USFDA certificate for our scanner
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems

Quick Details

X-ray Generator:

Beam direction: Diagonal
Generate angle: 80 degree
Anode Voltage: 140Kv
Anode power: 0.35mA
Cooling / Duty Cycle: Oil Cooling /100%

General Specification:

Tunnel Size: 800(W)*650(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Wire Resolution: 32AWG to 38AWG
Spatial resolution: horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm
Penetration: 40 to 43mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.5 μSv/h (at a distance of 5cm
from external housing)
Pass rate: 720 bags per hour

Installation Data:

Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.7KW(working)
Noise: <58db

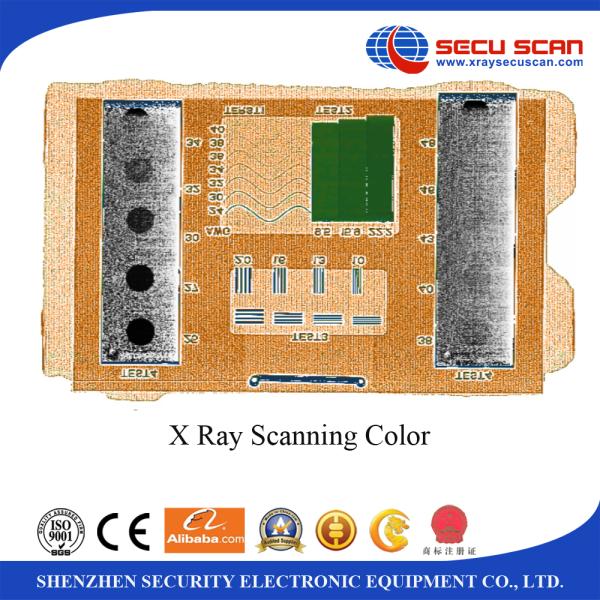

Image System:

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 19 inch
Image Processing: Edge enhancement, image strengthening, image
lightening,, reducing darkening, image returning,image retrieval.
Image Grey Level: 4096
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: max 16 Times Enlarge, Whole screen continuous observation

Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical

Our service:

  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.
